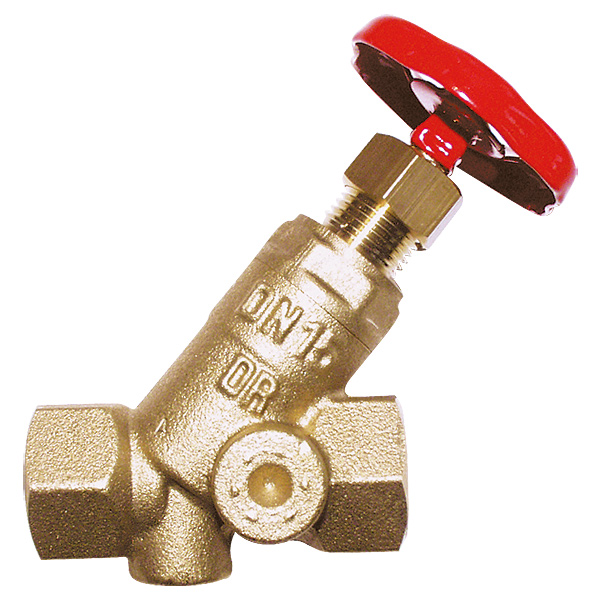

STRÖMAX shutoff valve with inclined body

4115

STRÖMAX shutoff valve with inclined body

Shutoff valves with inclined body and threaded sockets
Spindle sealing with compression gland

Socket x socket.
Spindle sealing with compression gland.
Upper part sealed by O-ring in the body.
Compression adapter connection:
DN 10–DN 15: Universal models with special sockets for threaded pipe and compression adapter connection.
DN 20: Adapter 1 6266 20 and compression adapter G 3/4.
Adapters and compression adapters must be ordered separately.
Max. operating temperature: 110°C. PN 20.

Product List

Code Description
  • kvs
  • DN
  • Sale Unit
1 4115 00 STRÖMAX shutoff valve with inclined body
  • 3.0
  • 10
  • 10
1 4115 01 STRÖMAX shutoff valve with inclined body
  • 4.0
  • 15
  • 10
1 4115 02 STRÖMAX shutoff valve with inclined body
  • 10.5
  • 20
  • 10
1 4115 03 STRÖMAX shutoff valve with inclined body
  • 18.0
  • 25
  • 10
1 4115 04 STRÖMAX shutoff valve with inclined body
  • 32.5
  • 32
  • 5
1 4115 05 STRÖMAX shutoff valve with inclined body
  • 44.0
  • 40
  • 5
1 4115 06 STRÖMAX shutoff valve with inclined body
  • 87.0
  • 50
  • 5
1 4115 07 STRÖMAX shutoff valve with inclined body
  • 112.0
  • 65
  • 1
1 4115 08 STRÖMAX shutoff valve with inclined body
  • 175.0
  • 80
  • 1
